R79A9
+
  • R79A9

R79A9

名称:R79A9 系列:卓越版 功率:24-42W 电流:500-1050mA 质保:3年

Keywords:

R79A9

Relevant documents

DC power supply cabinet KG2021081001 is a set of power supply and control solution designed by our company for LED lighting applications. The power supply cabinet inputs 380Vac three-phase power and outputs 240Vdc DC to supply power to the back-end LED lights and other equipment, and at the same time, the power supply cabinet is equipped with functions such as dimming, input/output monitoring, fault alarms, insulation monitoring and so on.

  • Product Description

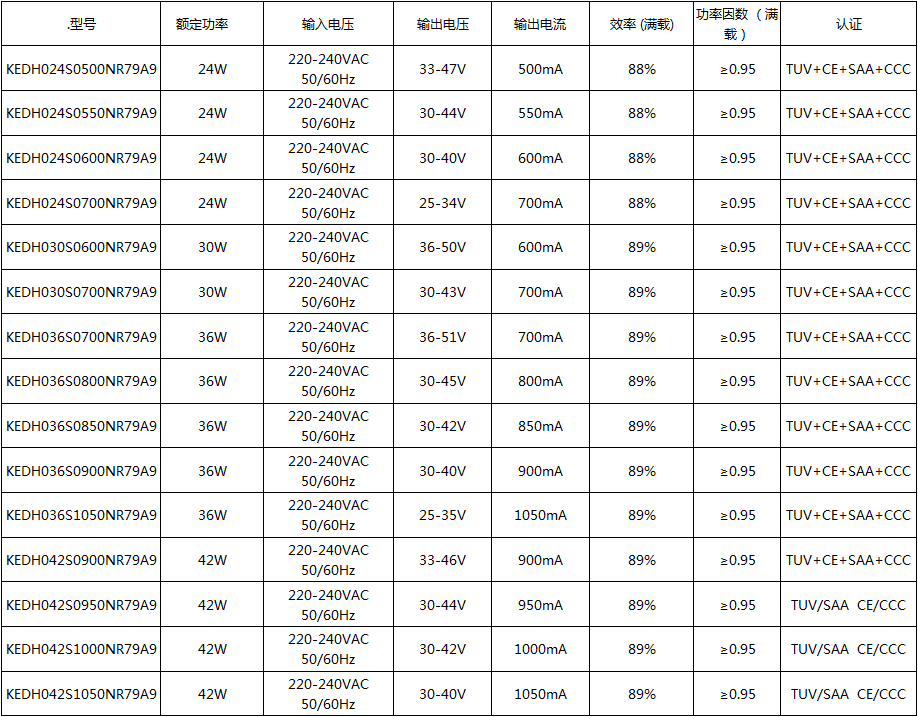

  • Parameters
    • Commodity name: R79A9
    • Commodity ID: R79A9
    • 参数规格: 名称:R79A9 系列:卓越版 功率:24-42W 电流:500-1050mA 质保:3年
    特性
    高功率因数
    保护种类:开路/短路/过载
    防护等级:IP20
    启动时间:<0.5s/220V
    工作温度:-10~50℃
    储存温度:-30~85℃
    认证:CCC
    应用:筒灯、面板灯、条形灯
    外壳尺寸:118*42.5*24mm
  •
