高P无频闪拨码内外置一体
+
  • 高P无频闪拨码内外置一体

高P无频闪拨码内外置一体

名称:R10A4-01 系列:商照拨码电源 功率:10.5-44.1W 电流:250-1050mA 质保:5年

Keywords:

高P无频闪拨码内外置一体

Relevant documents

DC power supply cabinet KG2021081001 is a set of power supply and control solution designed by our company for LED lighting applications. The power supply cabinet inputs 380Vac three-phase power and outputs 240Vdc DC to supply power to the back-end LED lights and other equipment, and at the same time, the power supply cabinet is equipped with functions such as dimming, input/output monitoring, fault alarms, insulation monitoring and so on.

  • Product Description
  • Parameters
    • Commodity name: 高P无频闪拨码内外置一体
    • Commodity ID: R10A4-01

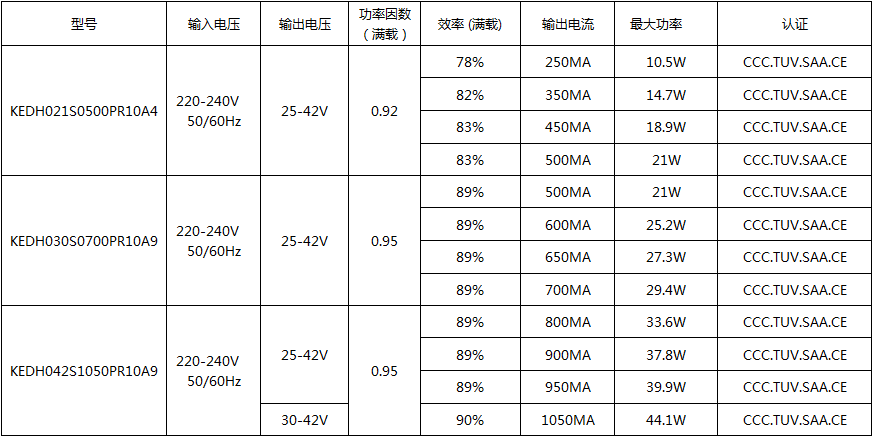

    • 参数规格: 名称:R10A4-01 系列:商照拨码电源 功率:10.5-44.1W 电流:250-1050mA 质保:5年
    特性
    电流纹波(mA):±7%
    保护种类:空载、短路、过载
    防护等级:IP20
    启动时间:<0.5s/220V
    工作温度:-20~50℃
    储存温度:-30~85℃
    认证:CE,TUV,CCC,SAA
    应用:筒灯、面板灯、条形灯
    外壳尺寸:97×43×31mm
  •
