COB商照系列电源
COB商照系列电源
+
  • COB商照系列电源
  • COB商照系列电源

COB商照系列电源

名称:NR97A9 系列:COB商照系列电源 功率:30-41.5W 电流:700mA~950mA 质保:5年

Keywords:

COB商照系列电源

Relevant documents

DC power supply cabinet KG2021081001 is a set of power supply and control solution designed by our company for LED lighting applications. The power supply cabinet inputs 380Vac three-phase power and outputs 240Vdc DC to supply power to the back-end LED lights and other equipment, and at the same time, the power supply cabinet is equipped with functions such as dimming, input/output monitoring, fault alarms, insulation monitoring and so on.

  • Product Description
  • Parameters
    • Commodity name: COB商照系列电源
    • Commodity ID: NR97A9

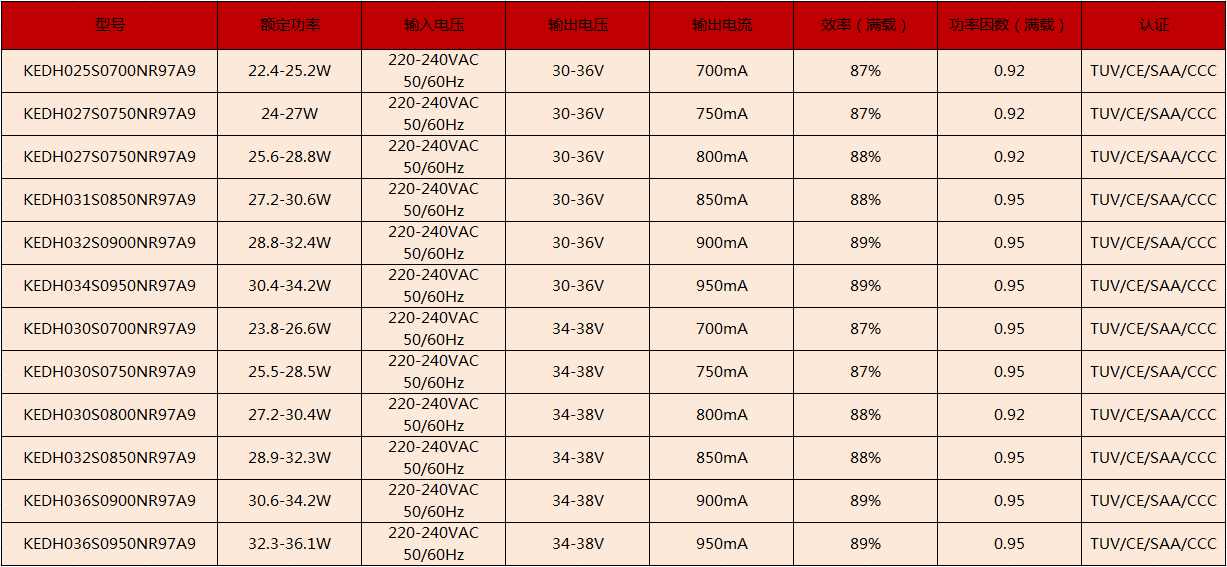

    • 参数规格: 名称:NR97A9 系列:COB商照系列电源 功率:30-41.5W 电流:700mA~950mA 质保:5年
    特性
    纹波电流:±5%
    保护种类:过载/短路/空载
    防护等级:IP20
    启动时间:<0.5s/230V(满载)
    工作温度:-20~45℃
    存储温度:-20~85℃
    认证:TUV/CE/SAA/CCC
    应用:筒灯、射灯
    外壳尺寸:105*45*25mm
  •

图片名称
